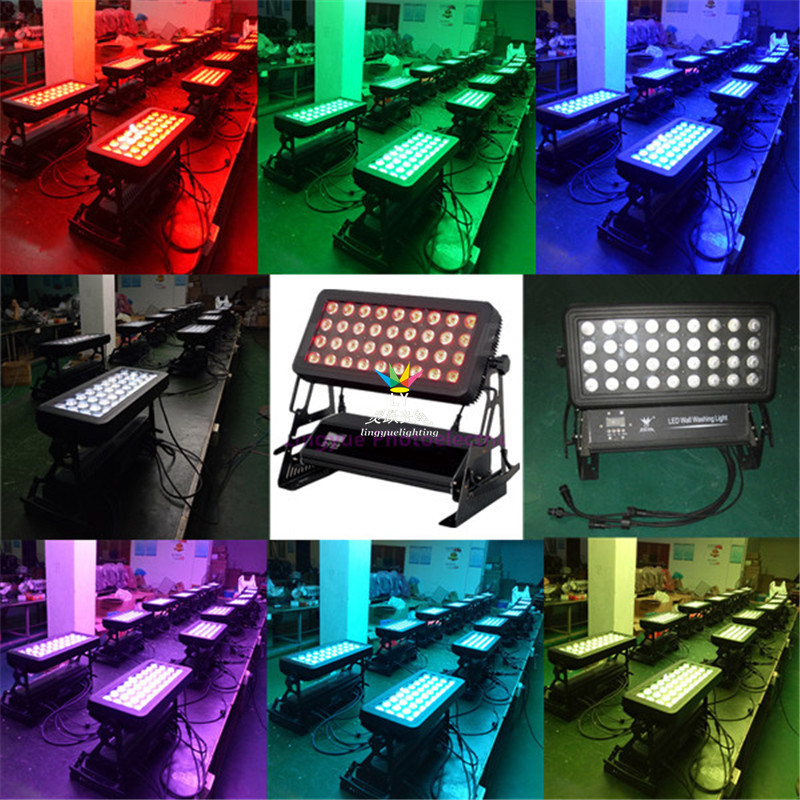

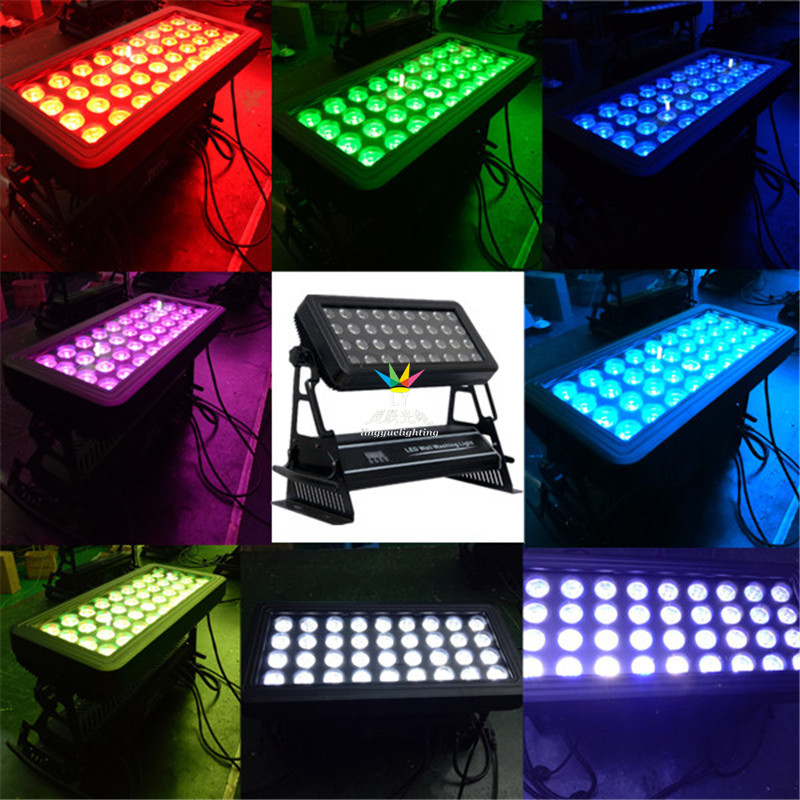

Product Name: IP65 36x12W Wall Washer
Product status: conventional product
Place of Origin: Guangzhou City (China)
Product Model: LY-3610W Waterproof 36pcs 4in1 Floodlight
Product power: AC220V/110V, 50/60Hz
Obtained certification: CE, ROHS, quality inspection report
Product packaging: carton (air box optional)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Scan to add WeChat customer service to provide more comprehensive services
Parameter

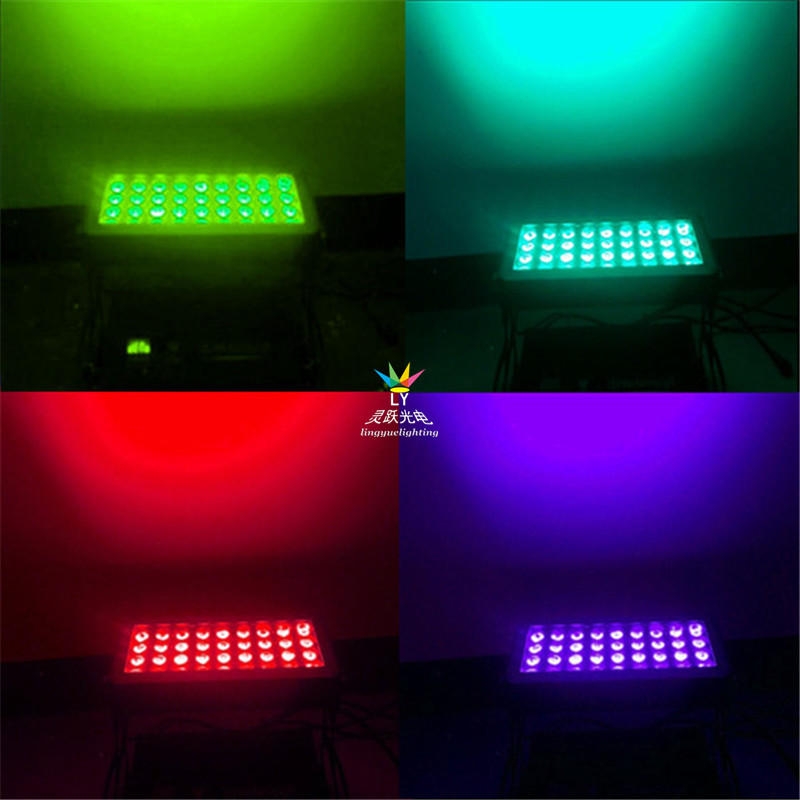

Lighting Effect
Video Show
Applications
Download

Product model: LY-3610W

Product name: IP65 36x12W Wall Washer


Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50Hz~60Hz

Power: 500W

LED light source: 36pcs 12W high brightness LED

LED color: red, green, blue and white four in one, can be mixed infinitely

LED life: 6-10 million hours

Optical lens: matte or smooth surface, factory default 25° (15°, 45°, 60° optional)

Rotation angle: the lamp cannot be automatically rotated, and the left and right angles cannot be adjusted manually, only the up and down angle

Control mode: DMX512, master-slave, self-propelled, voice control

Channel mode: 8 DMX512 channels

Strobe: Strobe speed 1-20 times per second

Dimming: 0%-100% linear dimming

Display: digital display + button

Waterproof rating: IP65

Lamp net weight: 14kgs

1 set/wooden box packing size: 66x38x42cm gross weight: 18kgs

1 set/air box packing size: 65x37x56cm gross weight: 32kgs


Certification and Report: CE/ROHS/ISO9001/Quality Inspection Report/IP65 Waterproof Level Testing Certification

Standard accessories: aluminum lamp hook, the lamp comes with waterproof signal line and power cord, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will be increased, 10-15 days (customization such as: LED light source, silk screen LOGO, packaging, LED lens angle, etc.)

Scope of application: theater, conference room, bridge lighting, outdoor lighting, nightclub or bar exterior lighting, outdoor evening parties, hotel exterior staining, outdoor large-scale commercial performances, etc.
