Product Name: Zoom 18pcs 6in1 LED par
Product status: conventional product
Place of Origin: China (Guangzhou)
Product model: LY-718L 18pcs 6in1 zoom LED par light
Product power: AC220V/110V, 50/60Hz
Obtained certification: CE, ROHS, quality inspection report
Product packaging: carton (air box optional)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Scan to add WeChat customer service to provide more comprehensive services
Parameter
Lighting Effect
Video Show
Applications
Download

Product model: LY-718L

Product Name: Zoom 18pcs 6in1 LED par


Product parameters:

Rated voltage: AC100V-240V ±10﹪, 50Hz~60Hz

Power: 324W

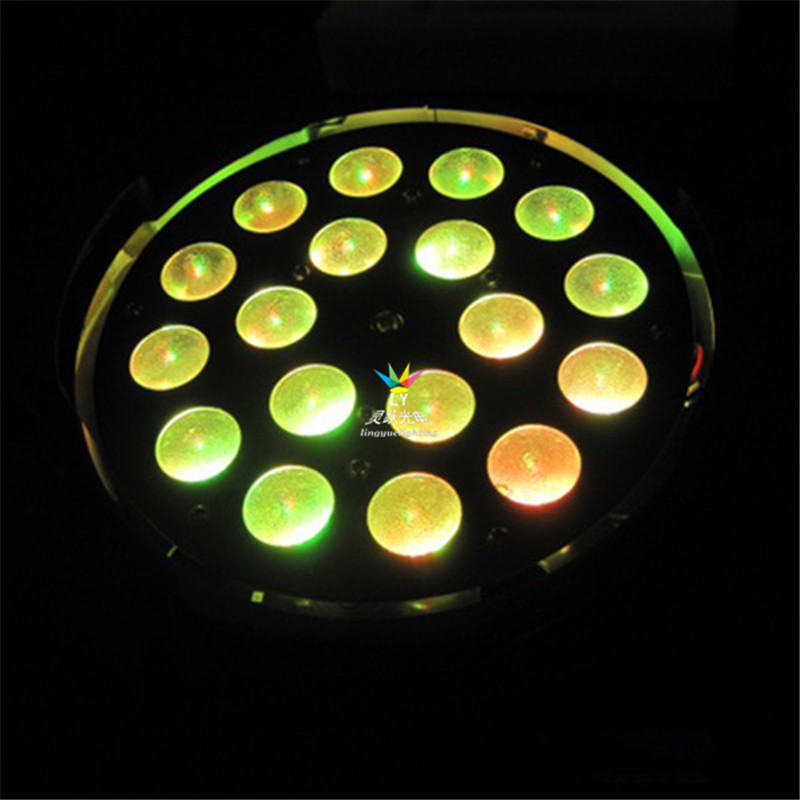

LED light source: 18pcs 18W high brightness LED

LED color: red, green, blue, white, orange and purple six in one, can be mixed infinitely

LED life: 6-10 million hours

Optical lens: matte or smooth surface, factory default 25° (15°, 45°, 60° optional)

Control mode: DMX512, master-slave, self-propelled, voice control

Channel mode: 11 DMX512 channels

Strobe: Strobe speed 1-20 times per second

Dimming: 0%-100% linear dimming

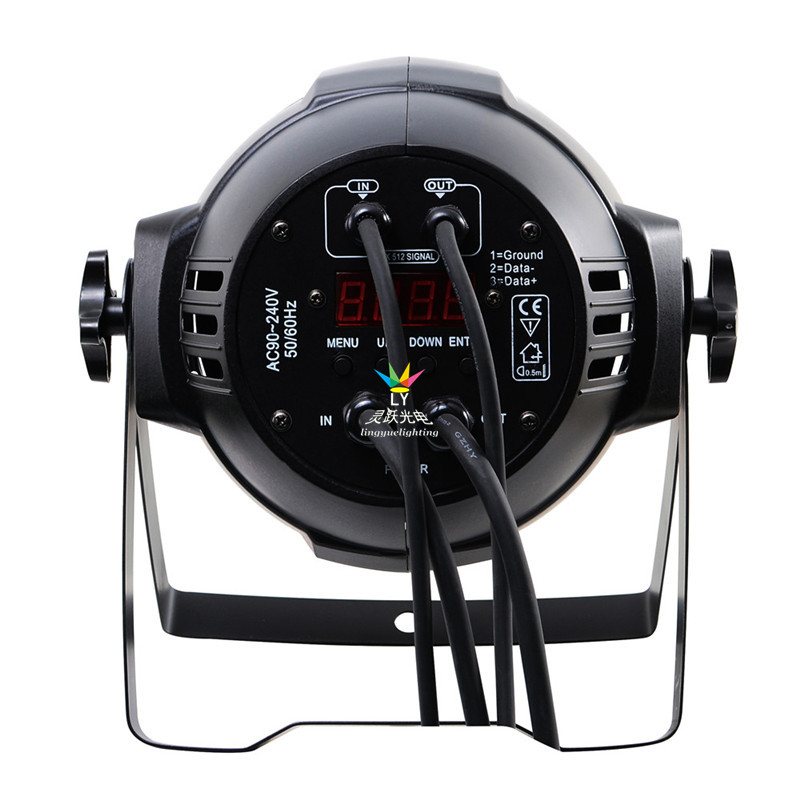

Display: digital display + button

Waterproof rating: IP20

Lamp size: 21.5x21.5x33cm Lamp net weight: 3kgs

1 set/carton packing size: 26x26x38.5cm gross weight: 3.5kgs

4 sets/carton packing size: 54x54x41cm gross weight: 15kgs

6 sets/carton packing size: 81x54x41cm gross weight: 23kgs

8 sets/air box packing size: 56x62x106cm gross weight: 60kgs


Certification and report: CE/ROHS/ISO9001/quality inspection report

Standard accessories: aluminum lamp hook, lamp with signal wire and power cable, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 100 units, and the delivery time of customized models will be increased, 10-15 days (customization such as: LED light source, silk screen LOGO, packaging, LED lens angle, etc.)

Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
