Product Name: Outdoor 20pcs 5in1 LED Par
Product status: conventional product
Place of Origin: China (Guangzhou)
Product Model: LY-205L outdoor 20pcs 5in1 LED Par Light
Product power: AC220V/110V, 50/60Hz
Obtained certification: CE, ROHS, quality inspection report
Product packaging: carton (air box optional)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Scan to add WeChat customer service to provide more comprehensive services
Parameter

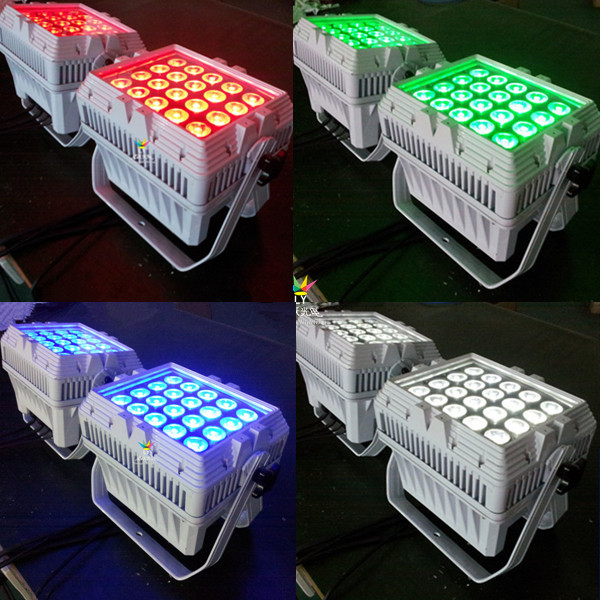

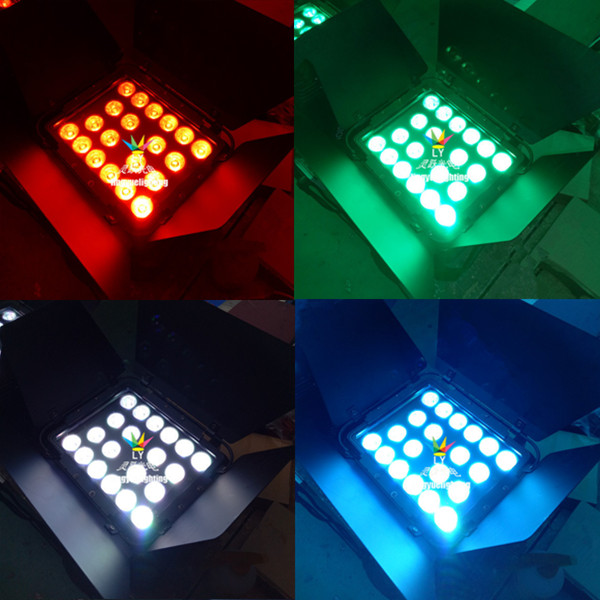

Lighting Effect
Video Show
Applications
Download

Product model: LY-205L

Product Name: Outdoor 20pcs 5in1 LED Par


Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50Hz~60Hz

Power: 300W

LED light source: 20x15W high brightness LED

LED color: red, green, blue, white and orange five in one, can be mixed infinitely

LED life: 6-10 million hours

Optical lens: matte or smooth surface, factory default 25° (15°, 45°, 60° optional)

Rotation angle: The lamp cannot be automatically rotated, and the left and right angles cannot be adjusted manually, only the up and down angles can be adjusted manually

Control mode: DMX512, master-slave, self-propelled, voice control

Channel mode: 9 DMX512 channels

Strobe: Strobe speed 1-20 times per second

Dimming: 0%-100% linear dimming

Display: digital display + button

Waterproof rating: IP65

Lamp net weight: 9.2kgs

1 set/carton packing size: 297x40x36cm gross weight: 9.9kgs

2 sets/carton packing size: 55x41x39cm gross weight: 21kgs

6 sets/air box packing size: 60x54x119cm gross weight: 88kgs


Certification and Report: CE/ROHS/ISO9001/Quality Inspection Report/IP65 Waterproof Level Testing Certification

Standard accessories: aluminum lamp hook, lamp with signal wire and power cable, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 100 units, and the delivery time of customized models will be increased, 10-15 days (customization such as: LED light source, silk screen LOGO, packaging, LED lens angle, etc.)

Scope of application: theater, conference room, bridge lighting, outdoor lighting, nightclub or bar exterior lighting, outdoor evening parties, hotel exterior dyeing, outdoor large-scale commercial performances, etc.
