Product Name: 72x3W LED Stage Light
Product status: conventional product (originated in Guangzhou-China)
Place of Origin: China (Guangzhou)
Product model: LY-723K 72 LED surface light
Product power: AC220V/110V, 50/60Hz
Obtained certification: CE, ROHS, quality inspection report
Product packaging: carton (air box optional)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM

Scan to add WeChat customer service to provide more comprehensive services

Parameter

Lighting Effect

Video Show

Applications

Download

Product model: LY-723K

Product name: 72x3W LED Stage Light

Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50Hz～60Hz

Power: 100W/260W

LED light source: 72 1W/3W high brightness LED

LED color: red, green, blue and white/warm white/white/warm white+white

LED life: 6-10 million hours

Optical lens: factory default 25° (15°, 45°, 60° optional)

Rotation angle: the lamp cannot be automatically rotated, and the left and right angles cannot be adjusted manually, only the up and down angle

Control mode: DMX512, master-slave, self-propelled, voice control

Channel mode: 8 DMX512 channels

Strobe: Strobe speed 1-20 times per second

Dimming: 0%-100% linear dimming

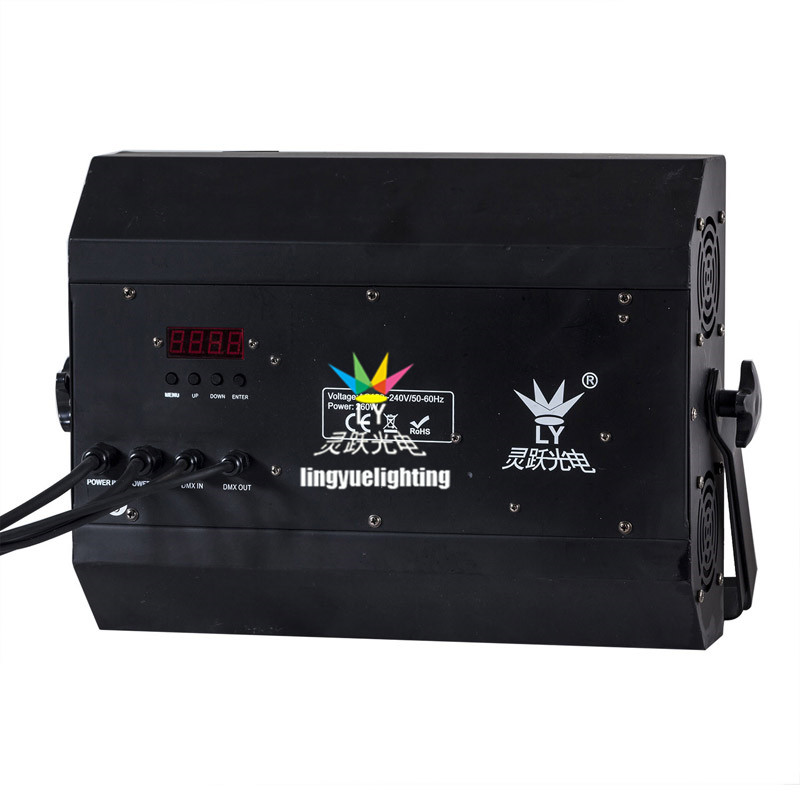

Display: digital display + button

Waterproof rating: IP20

Lamp net weight: 6.9kgs

1 set/carton packing size: 33x43x21cm gross weight: 8kgs

Certification and report: CE/ROHS/ISO9001/quality inspection report

Standard accessories: aluminum lamp hook, lamp with signal wire and power cable, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: customization is not supported for less than 100 units, and the delivery time for customized models will be increased, 10-15 days (customization such as: LED light source, silk screen LOGO, packaging, LED lens angle, etc.)

Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
