Product model: LY-350W

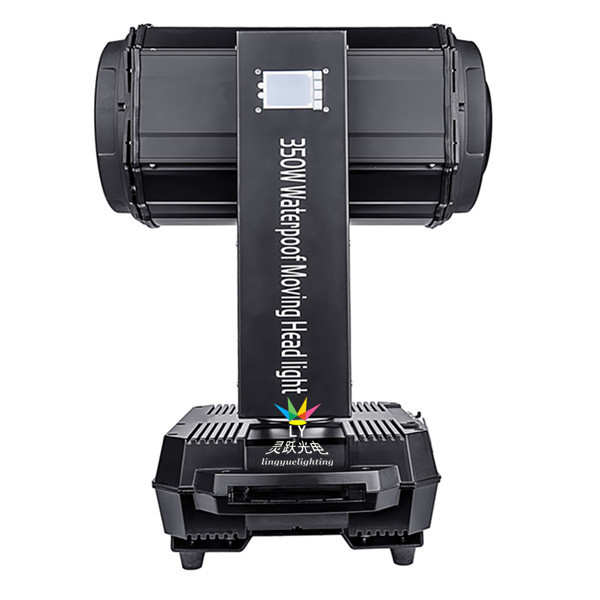

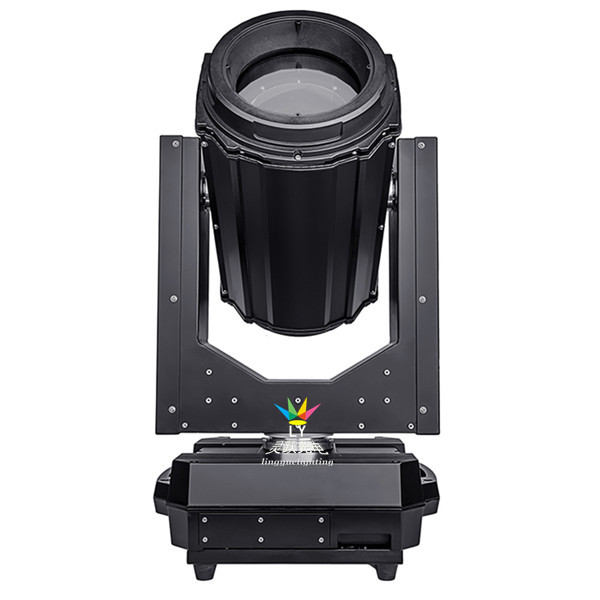

Product name: Outdoor 350W 17R beam light

Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50Hz～60Hz

Total power: 650W

Bulb: Youdeng/Japan Phoenix/Philips 350W (2000 hours)

Optical lens: 6 lens lens group

Rotation angle: 540° in the horizontal direction, 270° in the vertical direction (16bit precision scanning)

Beam angle: 0°-3.9°

Control mode: self-propelled, master-slave, DMX512, voice control

Channel mode: 16 international standard DMX512 channels

Electronic focus: high-precision glass optical lens, 50000LUX at 20 meters

Strobe: Strobe speed is 1-20 times per second, pulse strobe, synchronous and asynchronous strobe.

Dimming: 0%-100% linear dimming

Atomization: 0%-100% linear atomization, 1 independent atomization effect

Pattern plate: 17 pattern pieces + white circle, with pattern jitter and pattern arbitrary positioning function

Color wheel: 1 fixed color wheel has 14 color chips, with half-color effect, linear color conversion and two-way variable speed rotation rainbow effect

Prism disk: double prism effect, can be superimposed, 8/16/24 prism or waffle prism (8+8+8 or 8+16+24 optional) can be rotated forward and backward, and has prism positioning function, prism atomization Features

Focusing: with linear focusing function, 2 meters to infinitely adjustable pattern definition.

Display: LCD liquid crystal display + buttons or touch screen

Waterproof rating: IP65

Lamp net weight: 23.8kgs

1 set/carton packing size: 56x45x69cm gross weight: 26kgs

Certification and report: CE/ROHS/ISO9001/quality inspection report/IP65 waterproof rating

Standard accessories: hardware hooks, aluminum lamp hooks, the lamp comes with a waterproof signal line and power cord, safety rope, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will be increased, 10-15 days (customization such as light source, silk screen LOGO, packaging, etc.)

Scope of application: theater, conference room, bridge lighting, outdoor lighting, nightclub or bar exterior lighting, outdoor evening parties, hotel exterior dyeing, outdoor large-scale commercial performances, etc.
