Product Name: 9x12W LED Moving Head
Product status: conventional product (originating in Guangzhou-China)
Place of Origin: China (Guangzhou)
Product model: LY-309M 9 4-in-1 LED matrix moving head light
Product power: AC220V/110V, 50/60Hz
Obtained certification: CE, ROHS, quality inspection report
Product packaging: carton (can be customized air box)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM ODM OBM
Scan to add WeChat customer service to provide more comprehensive services
Parameter

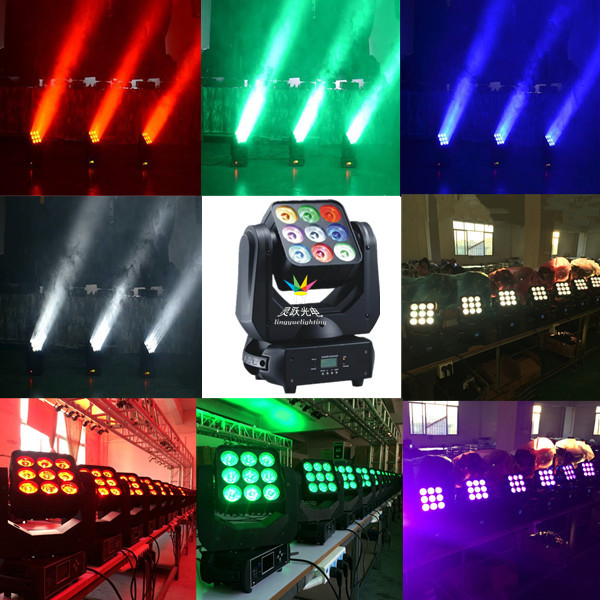

Lighting Effect
Video Show
Applications
Download

Product model: LY-309M

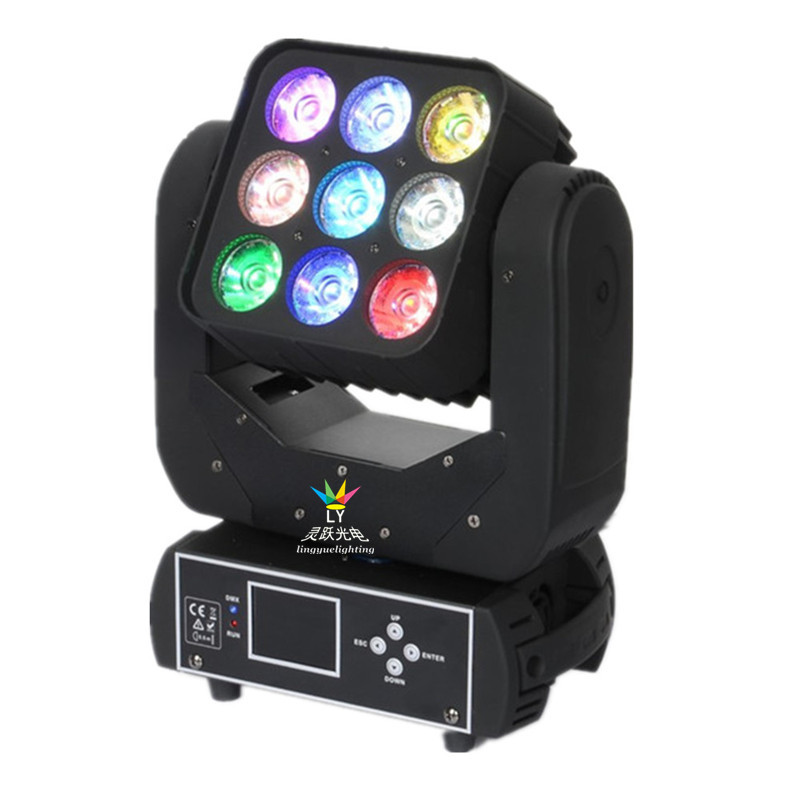

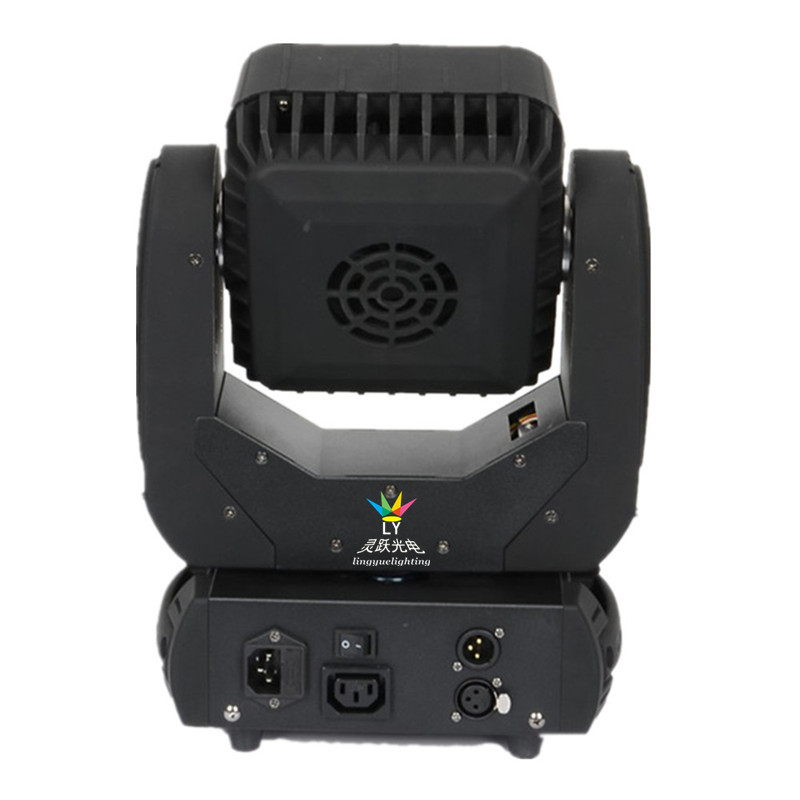

Product Name: 9x12W LED Matrix Moving Head Light


Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50Hz~60Hz

Power: 120W

LED light source: 9x12W high-brightness LEDs

LED color: red, green, blue and white four in one, can be mixed infinitely

LED life: 6-10 million hours

Optical lens: smooth surface, factory default 25° (15°, 45°, 60° optional)

Rotation angle: 540° in horizontal direction, 270° in vertical direction

Control mode: DMX512, master-slave, self-propelled, voice control

Channel mode: 16/48 DMX512 channels

Strobe: Strobe speed 1-20 times per second

Dimming: 0%-100% linear dimming

Display: LCD digital display + button

Waterproof rating: IP20

Lamp net weight: 7kgs

1 set/carton packing size: 27x14x40cm gross weight: 8kgs

4 sets/air box packing size: 64x53x39cm gross weight: 50kgs


Certification and report: CE/ROHS/ISO9001/quality inspection report

Standard accessories: hardware hook, aluminum light hook, signal wire, power cord, safety rope, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will be increased, 10-15 days (customization such as light source, silk screen LOGO, packaging, etc.)

Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
