Product model: LY-3001W

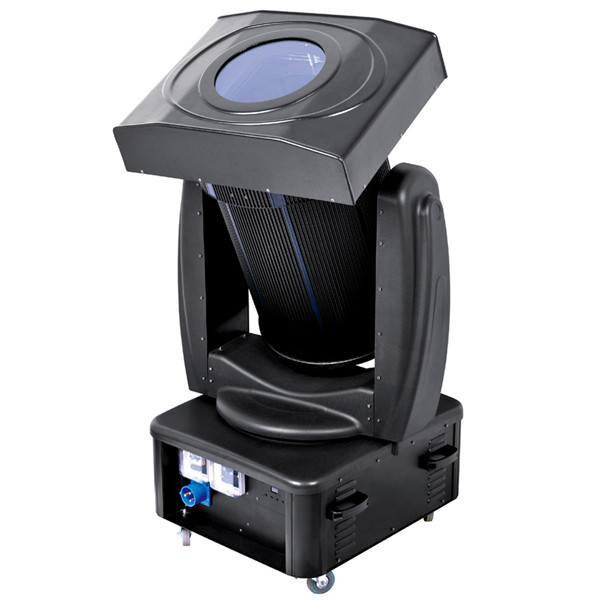

Product Name: 4KW Moving Head Sky Search

Product parameters:

Voltage: AC110V/220V/380 50/60Hz

Power: LY056A/4000W, LY056B/5000W

Bulb: XHM4000/XHM5000

Total length of bulb: 410mm/420mm

Fixing position length of bulb: 380 mm/390mm

Control signal: DMX-512 internal program has a single self-propelled function, and multiple internal programs have master-slave synchronization control signal reset function. X-axis and Y-axis forward and reverse The moving head color-changing searchlight that integrates dyeing and remote projection is a new generation of outdoor lighting. The appearance adopts aluminum alloy anti-oxidation design, which is better than traditional searchlights with a higher waterproof level. The newly successfully researched dust-proof filter system can provide long-term work in the harsh outdoor environment. With the advanced three-primary color (CMY) color change system, the product color change effect is unique. The unique liquid crystal display, strobe, electronic asymptotic linear dimming and focal length adjustment functions highlight the extraordinary taste of the product.

Protection level: IP55

Specially designed reflective bowl to produce the highest brightness output

X axis: 360°, with photosensitive error correction function, can automatically correct the lamp homing

X-axis fine-tuning: 5.4° fine-tuning, more accurate positioning

Y axis: 270°, with photosensitive correction function, can automatically correct the lamp homing

Y-axis fine-tuning: 5.4° fine-tuning, more accurate positioning

White light + CMY color changing system can combine a variety of colors.

Parallel light output, projection distance up to 4KM, beam diameter 280 mm

Function: The body has overheating, overload, short circuit, loss of voltage protection, shockproof,

Waterproof (LED) electronic setting display.

Widely used in high-rise buildings, gymnasiums, hotels, theme parks, amusement parks and large outdoor performances

Product size: 100x75x148cm

Packing size: 110x85x158cm

Product weight: 122Kg

Package weight: 132Kg
