PRODUCT CENTER
Stage Lighting Manufacturer

From procurement to production and assembly, quality is strictly controlled; products are strictly inspected and aging tested to ensure good stability.

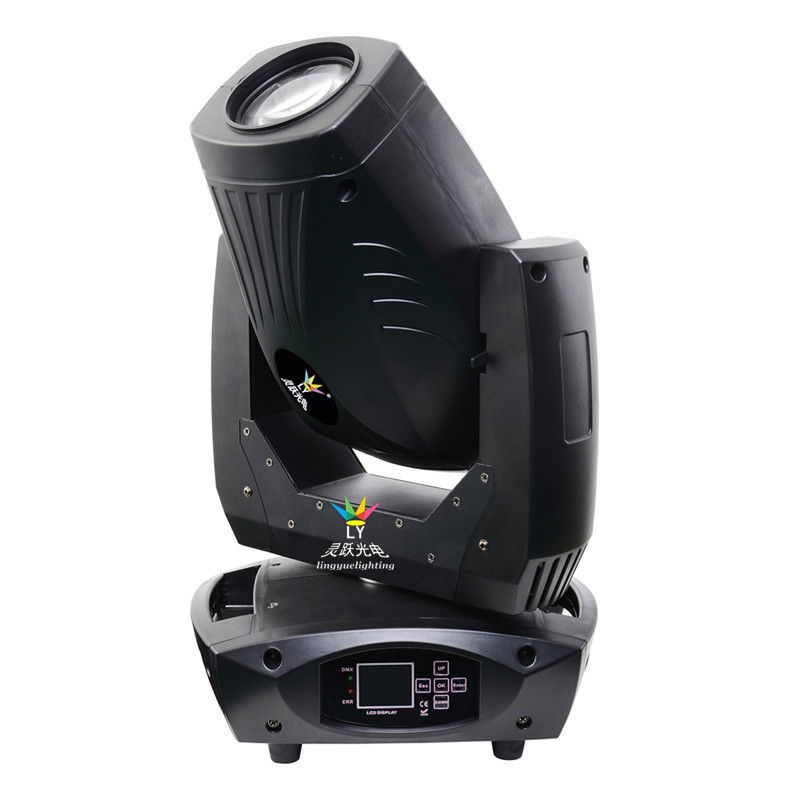

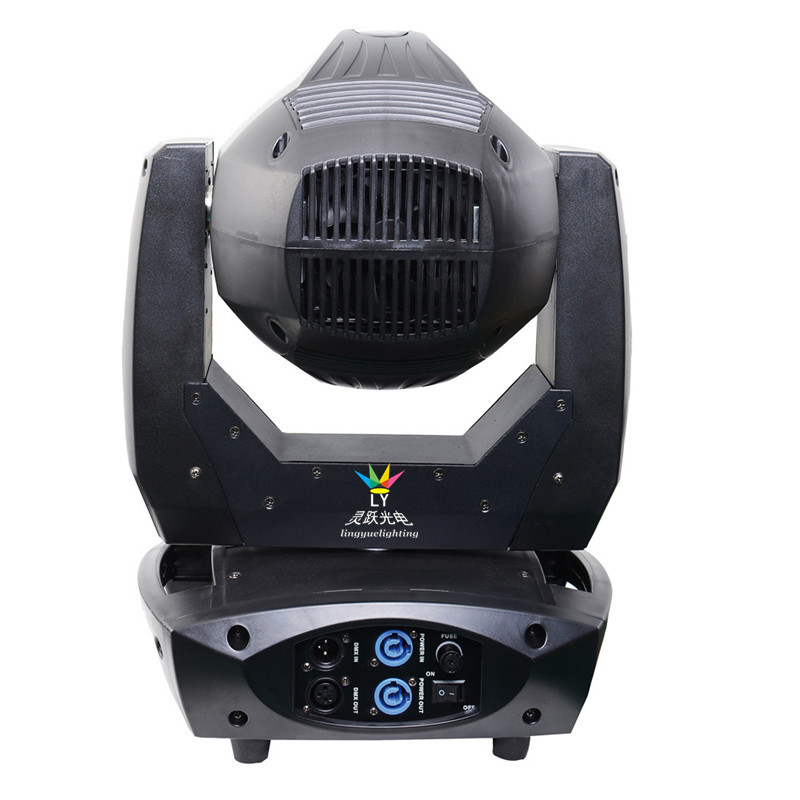

Product Name: 200W LED beam spot wash
Product status: finished product
Place of Origin: Guangzhou
Product model: LY-200M 200W LED beam pattern light
Product power: 200W
Obtained certification: CE ROHS ISO9001
Product packaging: carton or air box
Brand Name: Lingyue Optoelectronics
Production method: OEM
Scan to add WeChat customer service to provide more comprehensive services
Parameter
Lighting Effect
Video Show
Applications
Download

Product model: LY-200M

Product name: 200W LED beam spot wash


Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50Hz~60Hz

Power: 250W

LED light source: 1 piece 200W high brightness LED

LED life: 6-10 million hours

Electronic zoom range: 3°-38°

Rotation angle: 540° in horizontal direction, 270° in vertical direction

Control mode: DMX512, master-slave, self-propelled, voice control

Channel mode: 16 DMX512 channels

Stroboscopic: 1-20 times/sec, freely select the stroboscopic speed from slow to fast

Dimming: 0-100% linear dimming

Atomization: 0%-100% linear atomization, 1 independent atomization effect

Gobo plate: 1 fixed gobo plate with 8 patterns + 3 circles, 1 rotating gobo plate with 7 glass patterns + small circles

Color wheel: 9 colors + white light

Prism: 4 prisms with high-speed rotation function

Display: LCD liquid crystal display + button

Waterproof rating: IP20

Lamp net weight: 15kgs

2 sets/air box packing size: 65x43x82cm gross weight: 54kgs


Certification and report: CE/ROHS/ISO9001/quality inspection report

Standard accessories: hardware hook, aluminum light hook, signal wire, power cord, safety rope, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will be increased, 10-15 days (customization such as light source, silk screen LOGO, packaging, etc.)

Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
