Stage Lighting Manufacturer

From procurement to production and assembly, quality is strictly controlled; products are strictly inspected and aging tested to ensure good stability.
Product Name: battery 9pcs 4in1 LED par
Product status: finished product
Place of Origin: Guangzhou
Product model: LY-503L
Product power: 120W
Obtained certification: CE ROHS ISO9001
Product packaging: carton or air box
Brand Name: Lingyue Optoelectronics
Production method: OEM
Scan to add WeChat customer service to provide more comprehensive services
Parameter

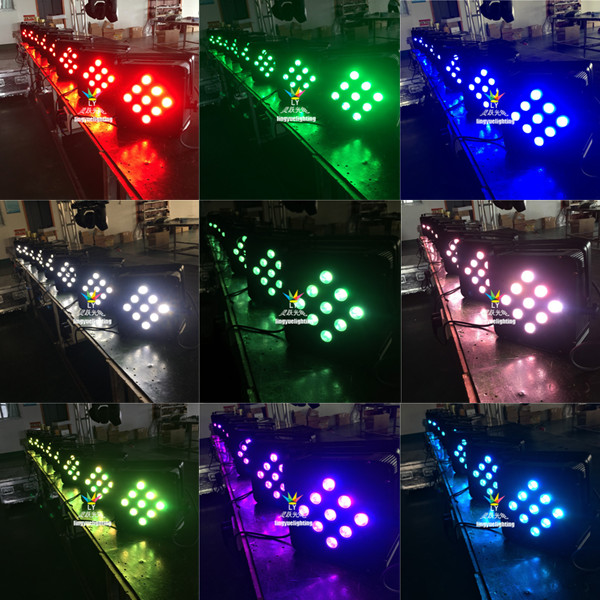

Lighting Effect
Video Show
Applications
Download

Product model: LY-503L

Product name: battery 9pcs 4in1 LED par


Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50Hz~60Hz

Power: 120W/150W/180W

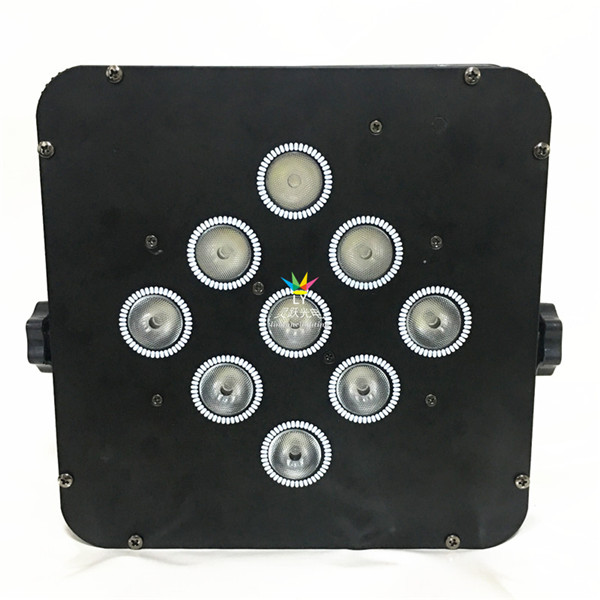

LED light source: 9x12W/15W/18W high brightness LED

LED color: red, green, blue and white four in one or red, green, blue, white and orange five in one or red, green, blue, white, orange and purple six in one, can be mixed infinitely

LED life: 6-10 million hours

Optical lens: matte or smooth surface, factory default 25° (15°, 45°, 60° optional)

Rotation angle: The lamp cannot be automatically rotated, and the left and right angles cannot be adjusted manually, only the up and down angles can be adjusted manually

Control mode: DMX512, master-slave, self-propelled, voice control

Channel mode: 8/9/10 DMX512 channels

Strobe: Strobe speed 1-20 times per second

Dimming: 0%-100% linear dimming

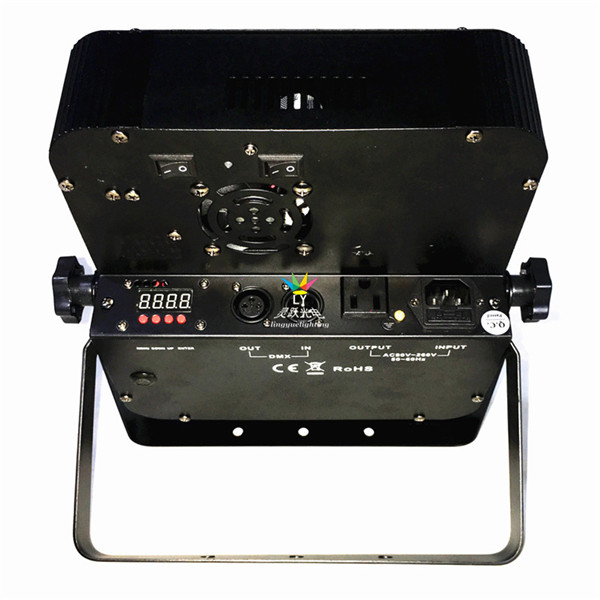

Display: digital display + button

Waterproof rating: IP20

Lamp net weight: 3.6kgs

1 set/carton packing size: 29x34x14cm gross weight: 4kgs

4 sets/carton packing size: 59x29x32cm gross weight: 17kgs

8 sets/air box packing size: 71x55x46cm gross weight: 52kgs


Certification and report: CE/ROHS/ISO9001/quality inspection report

Standard accessories: aluminum lamp hook, lamp with signal wire and power cable, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 100 units, and the delivery time of customized models will be increased, 10-15 days (customization such as: LED light source, silk screen LOGO, packaging, LED lens angle, etc.)

Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
