PRODUCT CENTER
Stage Lighting Manufacturer

From procurement to production and assembly, quality is strictly controlled; products are strictly inspected and aging tested to ensure good stability.

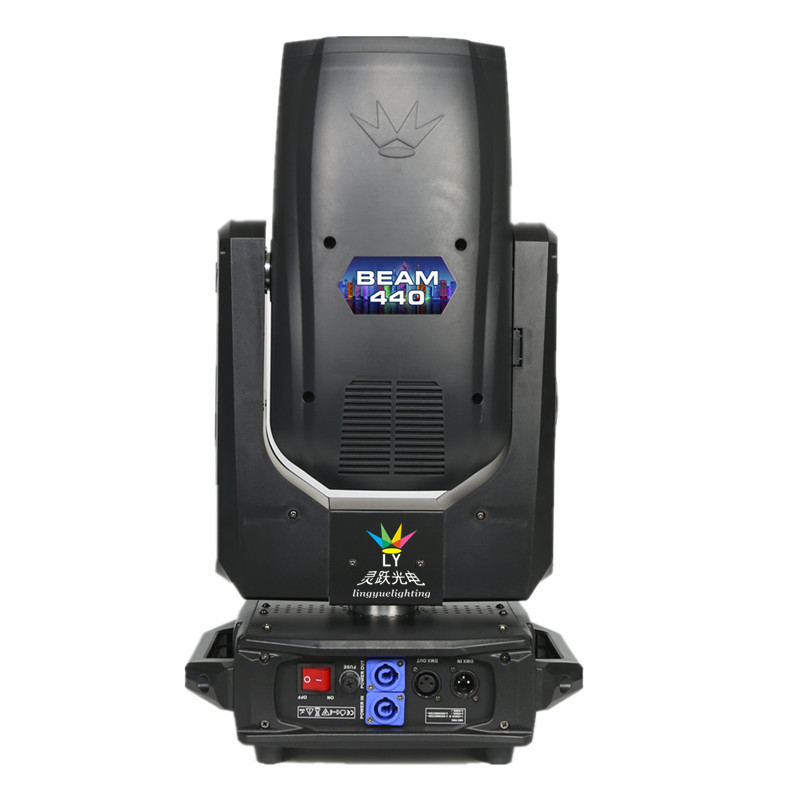

Product Name: New 440W beam light
Product status: finished product
Place of Origin: Guangzhou
Product model: LY-440S new 440W beam light
Product power: 700W
Obtained certification: CE ROHS ISO9001 quality inspection report
Product packaging: carton or air box
Brand Name: Lingyue Optoelectronics
Production method: OEM ODM EXW
Scan to add WeChat customer service to provide more comprehensive services
Parameter

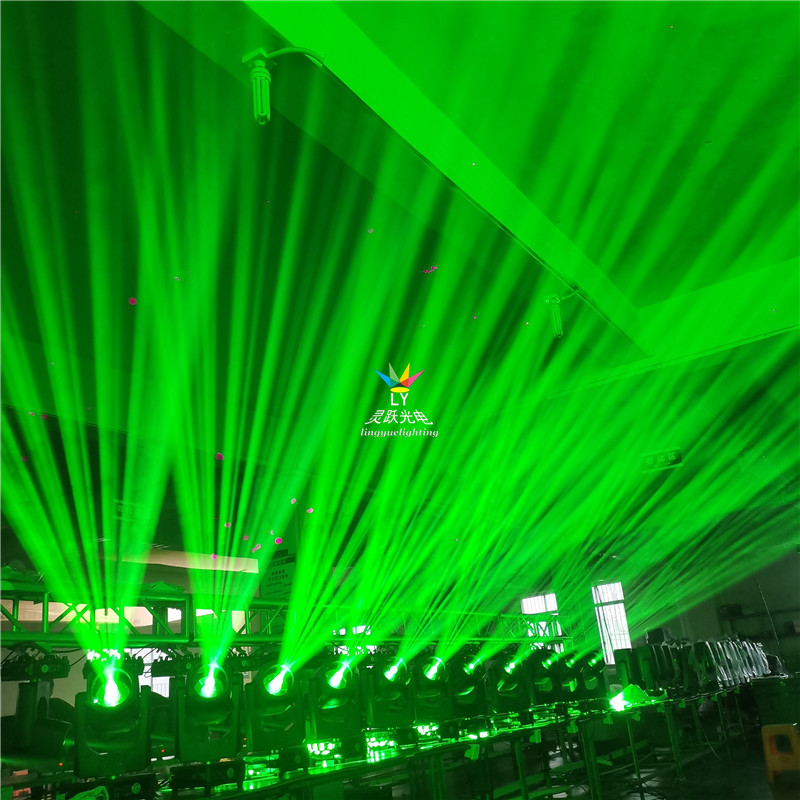

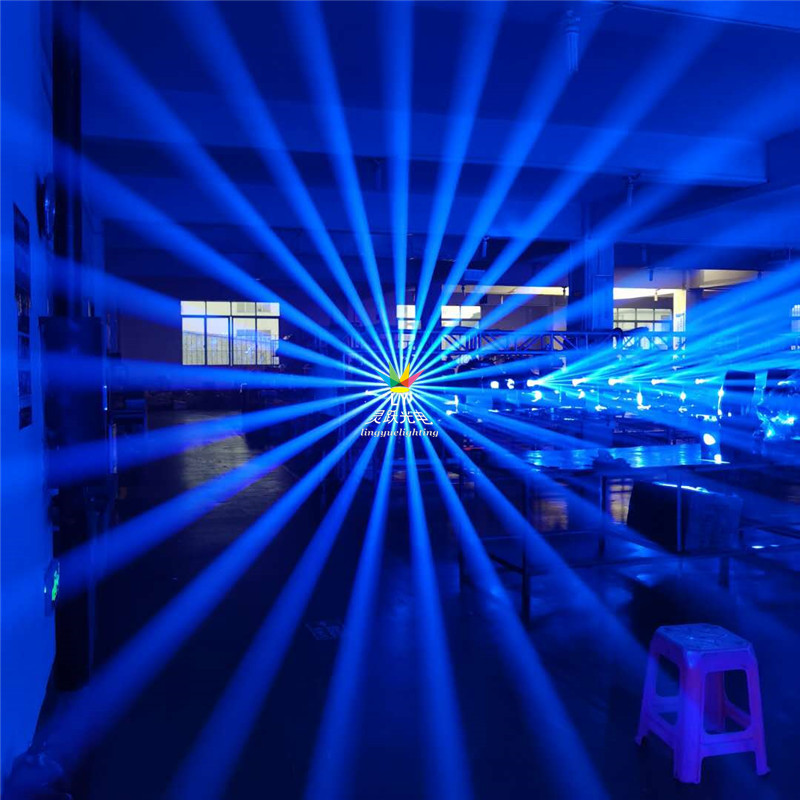

Lighting Effect
Video Show
Applications
Download

Product model: LY-440S

Product name: 440W beam light


Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50Hz~60Hz

Total power: 700W

Bulb: Youdeng/Japan Phoenix/Philips 440W (2000 hours)

Optical lens: 6 lens lens group

Rotation angle: 540° in the horizontal direction, 270° in the vertical direction (16bit precision scanning)

Beam angle: 0°-3.9°

Control mode: self-propelled, master-slave, DMX512, voice control

Channel mode: 18 international standard DMX512 channels

Electronic focus: high-precision glass optical lens, 50000LUX at 20 meters

Strobe: Strobe speed is 1-20 times per second, pulse strobe, synchronous and asynchronous strobe.

Dimming: 0%-100% linear dimming

Atomization: 0%-100% linear atomization, 1 independent atomization effect

Pattern plate: 13 pattern pieces + white circle, with pattern jitter and pattern arbitrary positioning function

Color wheel: 1 fixed color wheel has 13 color chips, can be half-color effect, linear color conversion and two-way variable speed rotation rainbow effect

Prism disk: double prism effect, can be superimposed, 8/16/24 prism or waffle prism (8+8+8 or 8+16+24 optional) can be rotated forward and backward, and has prism positioning function, prism atomization Features

Focusing: with linear focusing function, 2 meters to infinitely adjustable pattern definition.

Display: LCD liquid crystal display + buttons or touch screen

Waterproof rating: IP20

Product size: 38.2x36.5x58.7cm Lamp net weight: 15kgs

1 set/carton packing size: 47x47x74cm gross weight: 18kgs

2 sets/air box packing size: 83x44x84cm gross weight: 66kgs



Certification and report: CE/ROHS/ISO9001/quality inspection report

Standard accessories: hardware hook, aluminum light hook, signal wire, power cord, safety rope, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will be increased, 10-15 days (customization such as light source, silk screen LOGO, packaging, etc.)

Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
