Stage Lighting Manufacturer

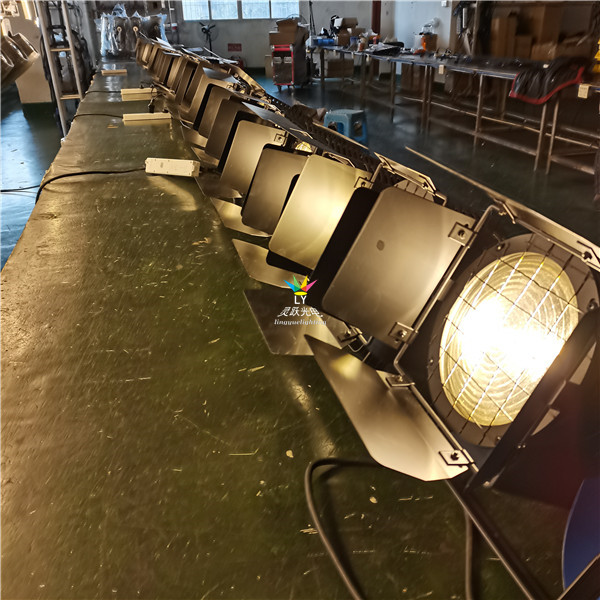

From procurement to production and assembly, quality is strictly controlled; products are strictly inspected and aging tested to ensure good stability.
Product Name: 200W LED Film Spotlight
Product status: finished product
Place of Origin: Guangzhou
Product model: LY-204K 200W LED video spotlight
Product power: 200W
Obtained certification: CE ROHS ISO9001
Product packaging: carton or air box
Brand Name: Lingyue Optoelectronics
Production method: OEM ODM
Scan to add WeChat customer service to provide more comprehensive services
Parameter
Lighting Effect
Video Show
Applications
Download

Product model: LY-204K

Product name: 200W LED Film Spotlight


Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50~60Hz

Power: 300W

LED light source: 1 piece 200W high brightness LED

LED color: warm white or true white or warm white + true white

LED life: 6-10 million hours

Optical lens: 15-65 degrees, manual focusing

 Rotation angle: The lamp cannot be automatically rotated, and the left and right angles cannot be adjusted manually, only the up and down angles can be adjusted manually

Control mode: DMX512, master-slave, self-propelled

Channel mode: 1 DMX512 channel

Strobe: Strobe speed 1-20 times per second

Dimming: 0%-100% linear dimming

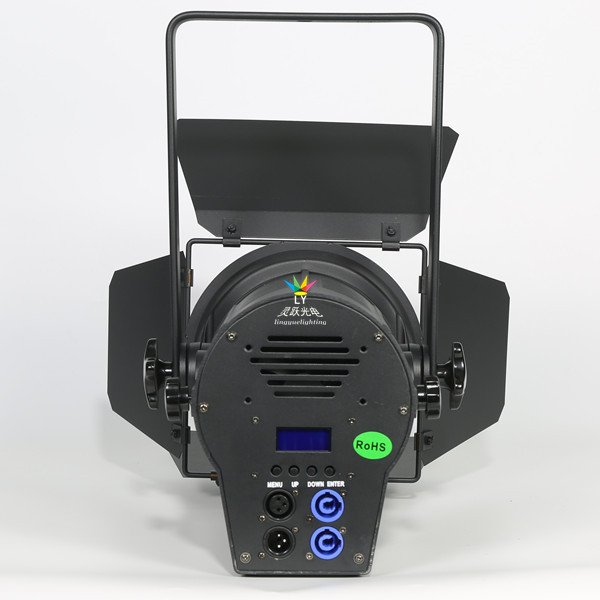

Display: digital display + button

Waterproof rating: IP20

Lamp size: 45x27x29cm Lamp net weight: 5.8kgs

1 set/carton packing size: 51x34x35cm gross weight: 7kgs

4 sets/carton packing size: 59x37x90cm gross weight: 31kgs


Certification and report: CE/ROHS/ISO9001/quality inspection report

Standard accessories: aluminum lamp hook, lamp with signal wire and power cable, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: customization is not supported for less than 100 units, and the delivery time for customized models will be increased, 10-15 days (customization such as: LED light source, silk screen LOGO, packaging, LED lens angle, etc.)

Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
