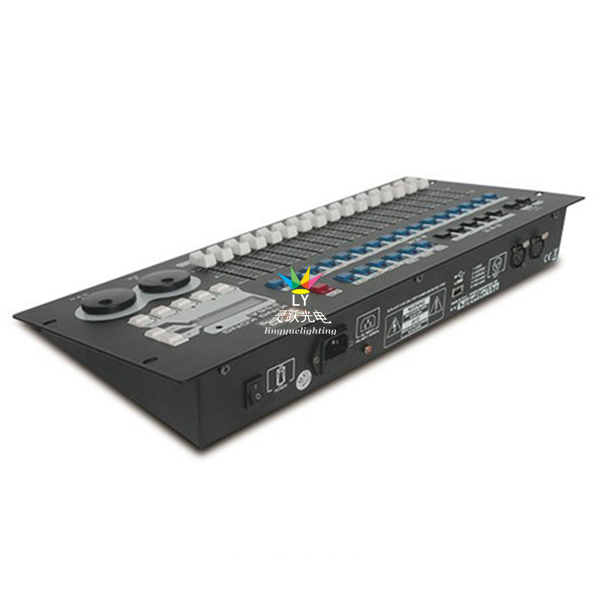

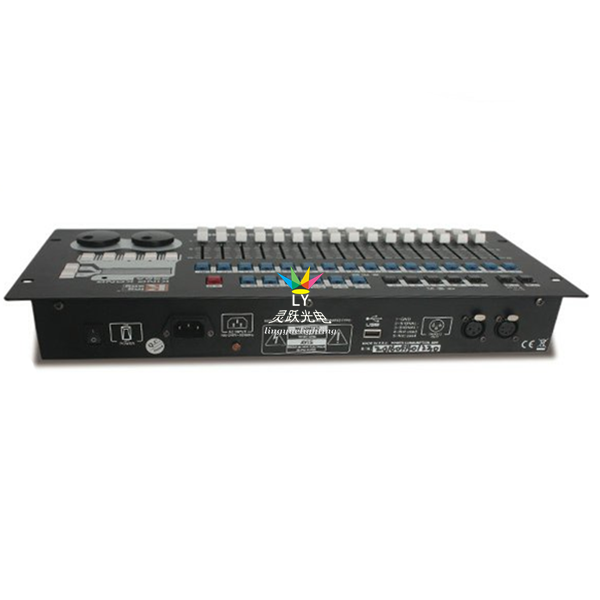

Product Name: 256A Console
-

Scan to add WeChat customer service to provide more comprehensive services

Parameter

Lighting Effect

Video Show

Applications

Download

Product Model: LY-8256A

Product Name: 256A console

Product Parameters:

Power supply: AC100-240V, 50-60Hz

Maximum control 16 computer lights or 64 dimming. Automatically generate light library

LCD display with backlight, the first Chinese and English display switchable interface. The panel is available in both Chinese and English. The built-in graph track generator has 35 built-in graphs, which is convenient for users to control the graph track of the fixture, such as circle, spiral, rainbow, chase and other effects. Graphical parameters (such as amplitude, speed, interval, wave, and direction) can be set independently, making it easier and faster to create desired shapes and scenes. 80 replay scenes can be stored for storing multi-step scenes and single-step scenes. Each multi-step scene can store up to 600 single steps. 16 replay scenes can be output and run simultaneously. With 16 central control faders. Button point control and fader set control are compatible. The data can be stored in memory in case of shutdown or sudden power failure. The U disk can back up the console data, and support re-import to the console for use, and the same type of console data can be shared. Support remote software upgrade, add new functions anytime and anywhere. The preset fader can control the properties of the fixture, and the property control is more convenient and fast. Support immediate black spot.

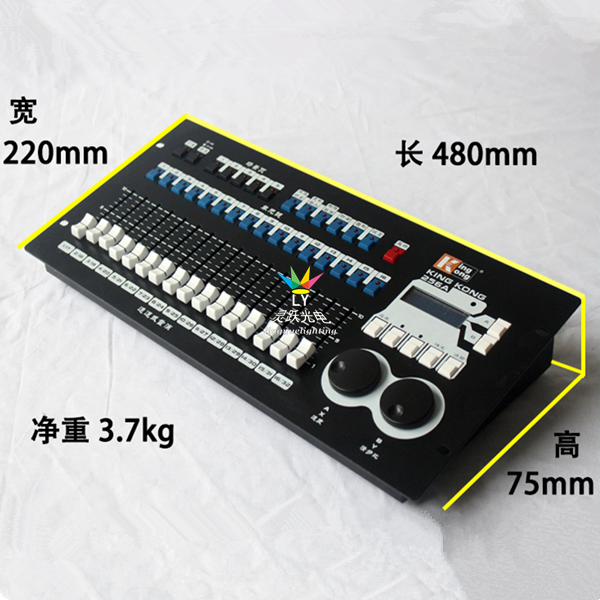

Product size: 48x22x7.5cm
