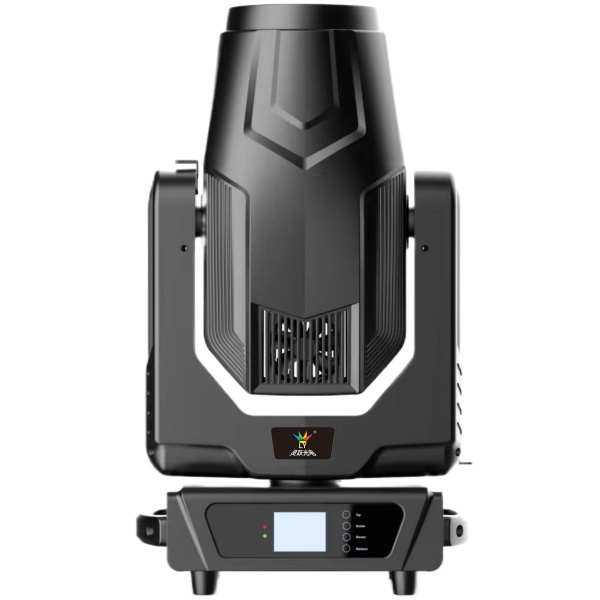

Product Name: 500W LED beam spot wash
-

Scan to add WeChat customer service to provide more comprehensive services

Parameter

Lighting Effect

Video Show

Applications

Download

Product model: LY-500R

Product name: 500W LED beam spot wash

Product parameters:

Input voltage: AC100-240V,50/60Hz; Rated power: 580W

Light source: high brightness 500W LED module light source; light source life: 20000 hours

Output caliber: 138MM; channel mode: 24 channels

Rotation Angle: Horizontal scanning 540 degrees, vertical scanning 270 degrees (16bit precision scanning) electronic error correction

Dimming system: 0-100% linear adjustment; focusing system: linear adjustment 4 meters to 50 meters

Fogging system: 1 independent fogging effect, soft and natural light spot

Zoom angle: beam for 2.7 ~ 40 °, coloring 4-40 °, pattern 4-40 °

High-speed strobe: 0-30 times / second, adjustable speed strobe effect, strobe macro function

Color: 7 colors + white light, color half-color function

Color system: CMY + CTO color mixing system; fixed patterns: 12 fixed patterns + white light

Rotating pattern: 7 glass patterns, each glass pattern can be independently forward and reverse rotation

Prism system: 3 prisms and 8 prisms, each prism can be independently rotated forward and reverse

Macro function: console reset function, self-propelled mode, master-slave mode

Display mode: LCD, key + touch dual operation mode

Control Signal: International standard DMX512, with RDM function, online software upgrade, dial address code.

Cooling: axial fan to strengthen the cooling; appearance material: high temperature plastic

Safety device: with electronic temperature control overheating protection, overheating system failure electronic temperature control automatic power-off protection

Working environment: -20 degrees, 40 degrees; protection grade: IP20

Product net weight: 22.5KG; Product size: 38*27*65CM (L*W*H)

Package size: 54*45*61CM; Gross weight: 25KG

Dimension of air box: 73*50*88CM; Gross weight: 77KG.

Certification and report: CE/ROHS/ISO9001/quality inspection report

Standard accessories: hardware hook, aluminum light hook, signal wire, power cord, safety rope, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will be increased, 10-15 days (customization such as light source, silk screen LOGO, packaging, etc.)

Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
