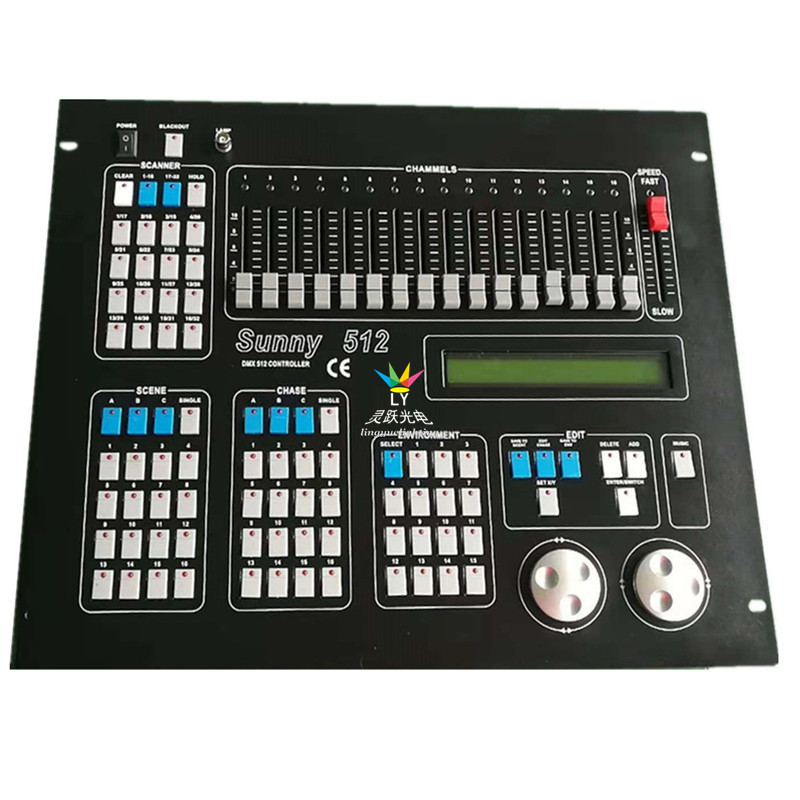

Product model: LY-8512C

Product name: Sunshine 512 console

Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50Hz～60Hz

DMX512/1990 standard, 512 DMX control channels, 2 optically isolated independent drive signal output ports, can resist 2000Vrms electrical shock, independent plug-in board structure, easy to replace, can control 32 16-channel computer lights, large-screen LCD with backlight Display operating parameters, 16 channel faders, 1 speed control fader, 1600 chase program step storage capacity, 48 chase programs, each program has a maximum of 100 steps, each step's speed and gradient parameters are independently set, and music is optional Synchronous or manual rate control, 4 chases and 48 scenes can be run at the same time, and 32 scanners can be operated at the same time. The X/Y of different types of scanners are uniformly controlled by the shuttle wheel, 15 environmental programs, Quickly call different combinations of scenes, chases, manual operation (lanterns), music trigger signal source can be taken from audio line input or built-in microphone pickup, shutdown data retention, built-in high-performance green switching power supply, extremely low power harmonic distortion And a very wide range of voltage adaptation, in line with the power requirements of countries all over the world, high-end imported durable buttons, special lamp button function, DMX signal output connector: XLR-D3Fx2, audio line input connector: 1/4" mono socket , Optional 12V gooseneck work light

Main application scope: music bar, bar, stage, ballroom, studio, multi-function hall, performance, wedding ceremony, hotel banquet hall, etc.

1 set/carton packing size: 57.5x23.5x49cm gross weight: 9kgs

1 set/air box packing size: 55x46x20cm gross weight: 13.5kgs
