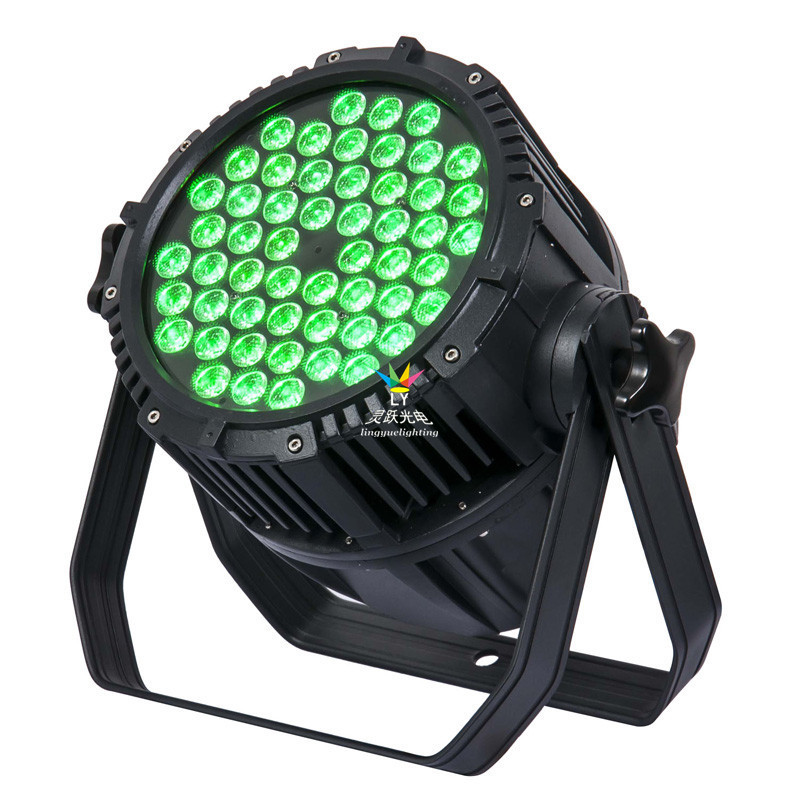

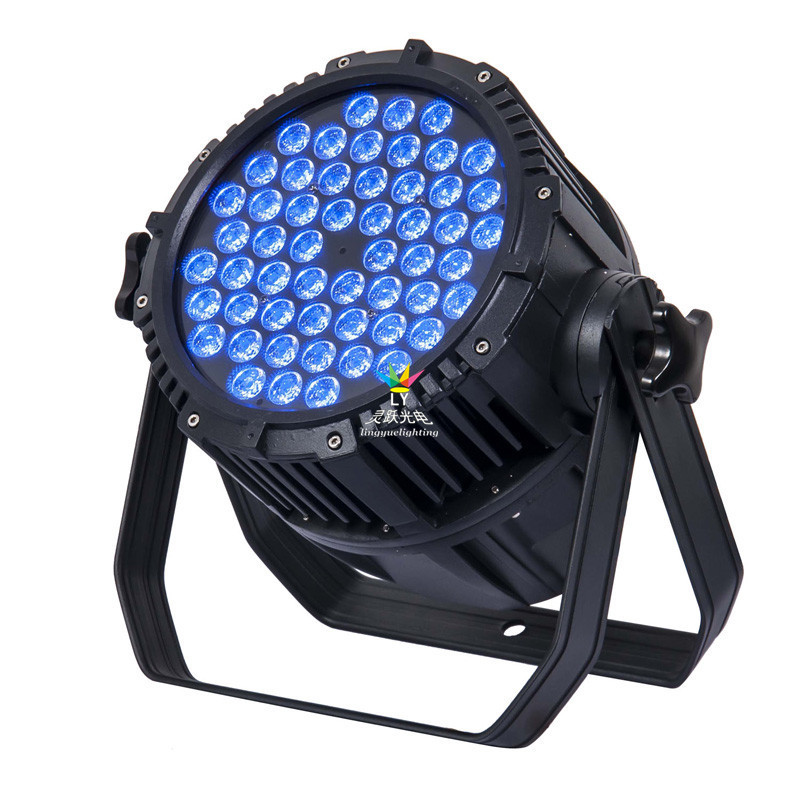

Product Name: Outdoor 54pcs RGB 3in1 LED par
Product status: conventional product
Place of Origin: China (Guangzhou)
Product model: LY-511L Waterproof 54 full-color LED par light
Product power: AC220V/110V, 50/60Hz
Obtained certification: CE, ROSH, quality inspection report
Product packaging: carton (air box optional)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Scan to add WeChat customer service to provide more comprehensive services
Parameter

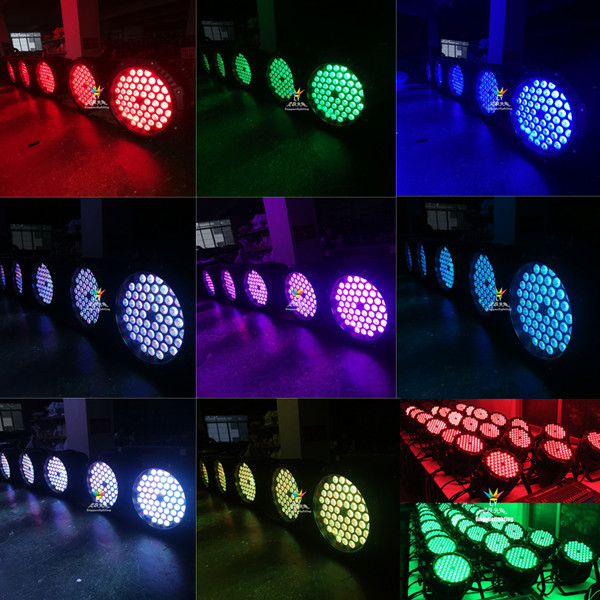

Lighting Effect
Video Show
Applications
Download

Product model: LY-511L

Product name: Outdoor 54pcs RGB 3in1 LED par


Product parameters:

Rated voltage: AC100V-240V ±10﹪, 50Hz~60Hz

Power: 80W/200W

LED light source: 54x1W/3W high brightness LED

LED color: red, green and blue 3in one, can be mixed infinitely

LED life: 6-10 million hours

Optical lens: matte or smooth surface, factory default 25° (15°, 45°, 60° optional)

Control mode: DMX512, master-slave, self-propelled, voice control

Channel mode: 7 DMX512 channels

Strobe: Strobe speed 1-20 times per second

Dimming: 0%-100% linear dimming

Display: digital display + button

Waterproof rating: IP65

Lamp net weight: 7.3kgs

1 set/carton packing size: 26x26x38.5cm gross weight: 7.8kgs

4 sets/carton packing size: 54x54x41cm gross weight: 34.5kgs

8 sets/air box packing size: 61x63x120cm gross weight: 95kgs


Certification and Report: CE/ROHS/ISO9001/Quality Inspection Report/IP65 Waterproof Level Testing Certification

Standard accessories: aluminum lamp hook, lamp with signal wire and power cable, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 100 units, and the delivery time of customized models will be increased, 10-15 days (customization such as: LED light source, silk screen LOGO, packaging, LED lens angle, etc.)

Scope of application: theater, conference room, bridge lighting, outdoor lighting, nightclub or bar exterior lighting, outdoor evening parties, hotel exterior dyeing, outdoor large-scale commercial performances, etc.
