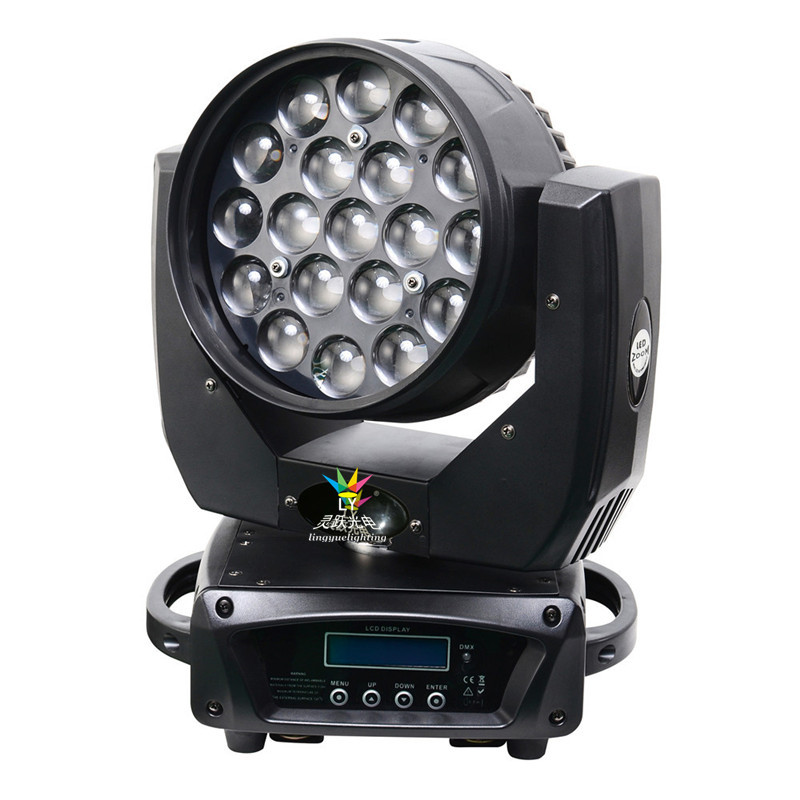

Product Name: 19pcs 4in1 zoom LED moving
Product status: conventional product (originated in Guangzhou-China)
Place of Origin: China. Guangzhou
Product model: LY-190M 19 4-in-1 LED focusing and dyeing moving head light
Product power: AC24v/110-240v 50-60Hz
Obtained certification: CE, ROHS, quality inspection report
Product packaging: carton (can be customized air box)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM

Scan to add WeChat customer service to provide more comprehensive services

Parameter

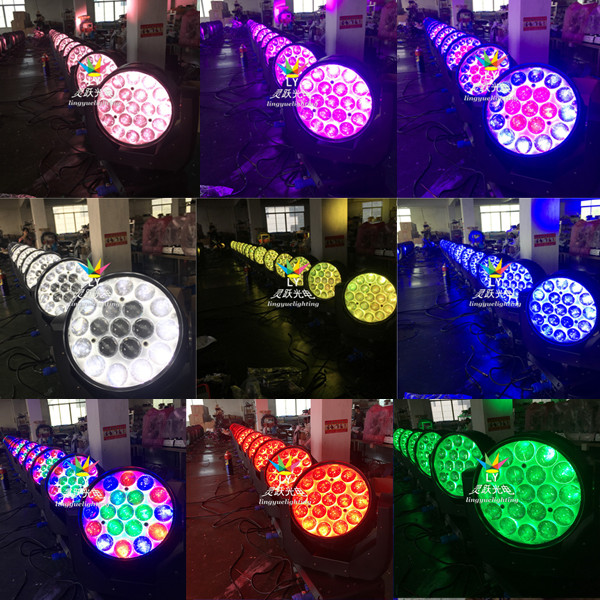

Lighting Effect

Video Show

Applications

Download

Product model: LY-190M

Product name: 19pcs 4in1 zoom LED moving head light

Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50Hz～60Hz

Power: 280W

LED light source: 19x12W high brightness LED

LED color: red, green, blue and white four in one, can be mixed infinitely

LED life: 6-10 million hours

Optical lens: smooth surface, 11°

Rotation angle: horizontal 540 degrees, 8 or 16bit resolution; vertical 270 degrees, 8 or 16bit resolution

Control mode: DMX512, master-slave, self-propelled, voice control

Channel mode: 16/24 DMX512 channels

Focusing angle: 8°-15°

Strobe: 0-100% linear adjustment strobe

Dimming: 0-100% linear dimming

Display: LCD liquid crystal display + button

Waterproof rating: IP20

Lamp net weight: 7.8kgs

1 set/carton packing size: 46x29x37cm gross weight: 10kgs

4 sets/air box packing size: 83x70x58cm gross weight: 68kgs

Certification and report: CE/ROHS/ISO9001/quality inspection report

Standard accessories: hardware hook, aluminum light hook, signal wire, power cord, safety rope, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will be increased, 10-15 days (customization such as light source, silk screen LOGO, packaging, etc.)

Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
