Stage Lighting Manufacturer

From procurement to production and assembly, quality is strictly controlled; products are strictly inspected and aging tested to ensure good stability.
Product Name: 12pcs football LED beam
Product status: conventional product (originating in Guangzhou-China)
Place of Origin: China (Guangzhou)
Product model: LY-012M 12 LED moving head beam light
Product power: AC220V/110V, 50/60Hz
Obtained certification: CE, ROHS, quality inspection report
Product packaging: carton (air box optional)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Scan to add WeChat customer service to provide more comprehensive services
Parameter

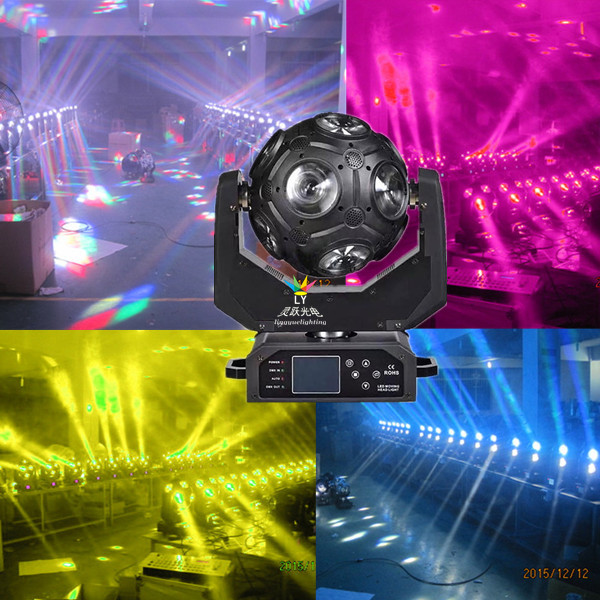

Lighting Effect
Video Show
Applications
Download

Product model: LY-012M

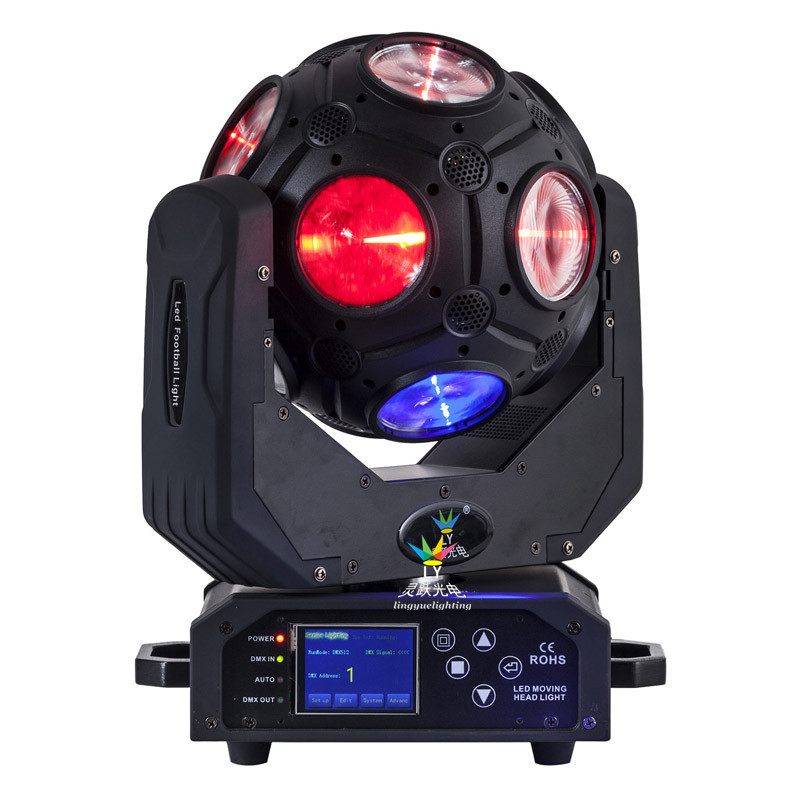

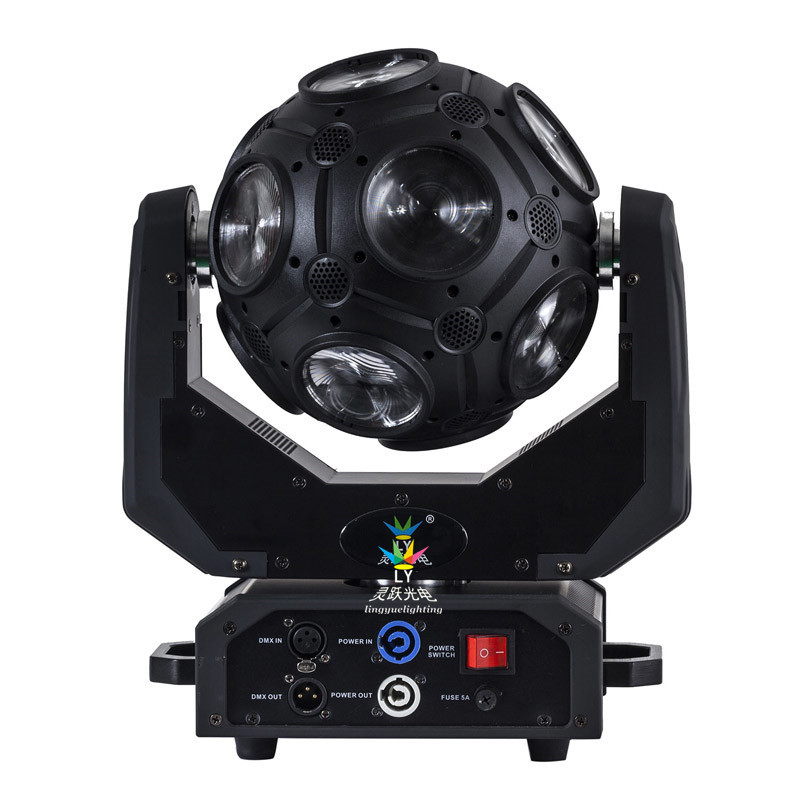

Product name: 12pcs football LED beam moving head light


Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50Hz~60Hz

Power: 180W

LED light source: 12x12W high brightness LED

LED color: red, green, blue and white four in one or pure white light, can be mixed infinitely

LED life: 6-10 million hours

Optical lens: smooth surface, 8°

Rotation angle: X axis positive and negative positioning rotation, Y axis stepless rotation

Control mode: DMX512, master-slave, self-propelled, voice control

Channel mode: 21 DMX512 channels

Strobe: 1-12 times/sec

Dimming: 0-100% linear dimming

Display: LCD liquid crystal display + button

Waterproof rating: IP20

Lamp net weight: 6.5kgs

1 set/carton packing size: 39x30x49cm gross weight: 8.9kgs


Certification and report: CE/ROHS/ISO9001/quality inspection report

Standard accessories: hardware hook, aluminum light hook, signal wire, power cord, safety rope, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will increase, 10-15 days (customization such as light source, silk screen LOGO, packaging, etc.)

Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
